- Premium Contactors offers a completely encased and compact design to protect the contactor from dust and other environmental elements
- The universal mounting plate eliminates changing hole patterns when replacing competitive contactors
- Equipped with box lugs and quick connect terminals (side-by-side) for easy electrical connection
- Premium Contactors contactors used in applications, other than HVAC, such as elevators, pools, food processing, pumps/compressors, lighting, hoists and cranes, battery chargers, printing presses, vending machines, and agriculture
- UL Recognized, CSA certified, ARI 780 790 Standard, CE marked, RoHS Complaint

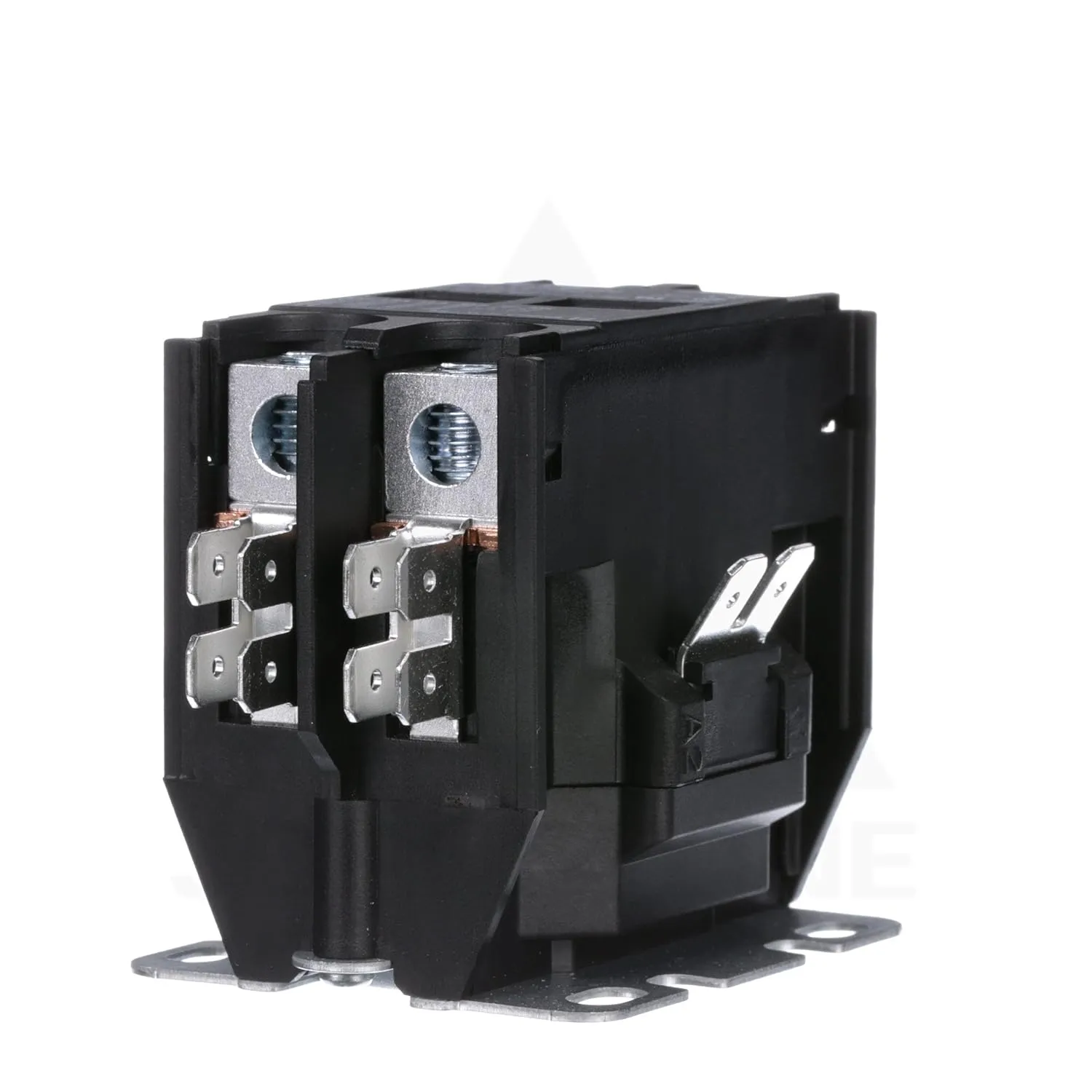

Premium Contactors
Definite purpose contactors are electrically activated switches designed for application-specific use (i.e., HVAC, compressors, etc) to provide compact load control that can handle diverse switching needs. These reliable control components are available up to 120 amp capacity and in 1- or 3-phase configurations at coil voltages from 24 to 240 VAC.
Features:
- CONTACTOR
- Amperage (FLA): 40A @ 600V
- Resistive (RES): 50A @ 600V
- Coil Voltage: 240V
- Poles: 2 (Double)
- Equipped with box lugs and quick connect terminals (side-by-side) for easy electrical connection
Additional Applications:
- Eaton Contactors can be used in applications such as elevators, pools, food processing, pumps/compressors, lighting, hoists and cranes, battery chargers, printing presses, vending machines, and agriculture.
Replaces:
- GE CR453CE2BBB
- Siemens / Furnas 45GG20AG
- Square D 8910DP42V09
- 3100Y20U18999CL
- Grainger 49C077
Note : Images are for illustration only. Actual item may vary.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 2.5 x 3 x 3.5 inches; 8.64 ounces
- Date First Available : June 25, 2013
- Manufacturer : Eaton
