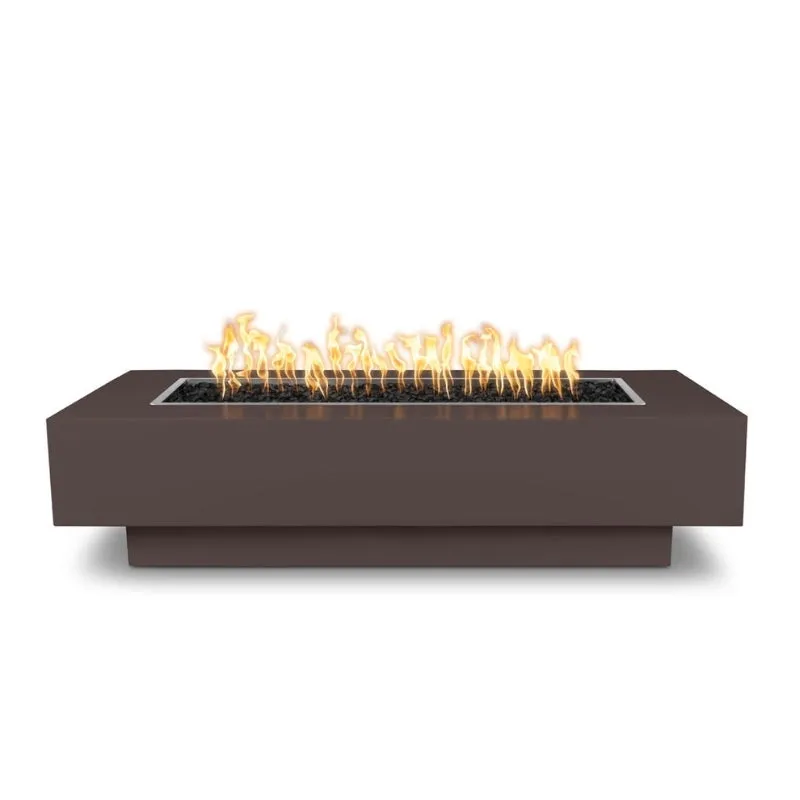

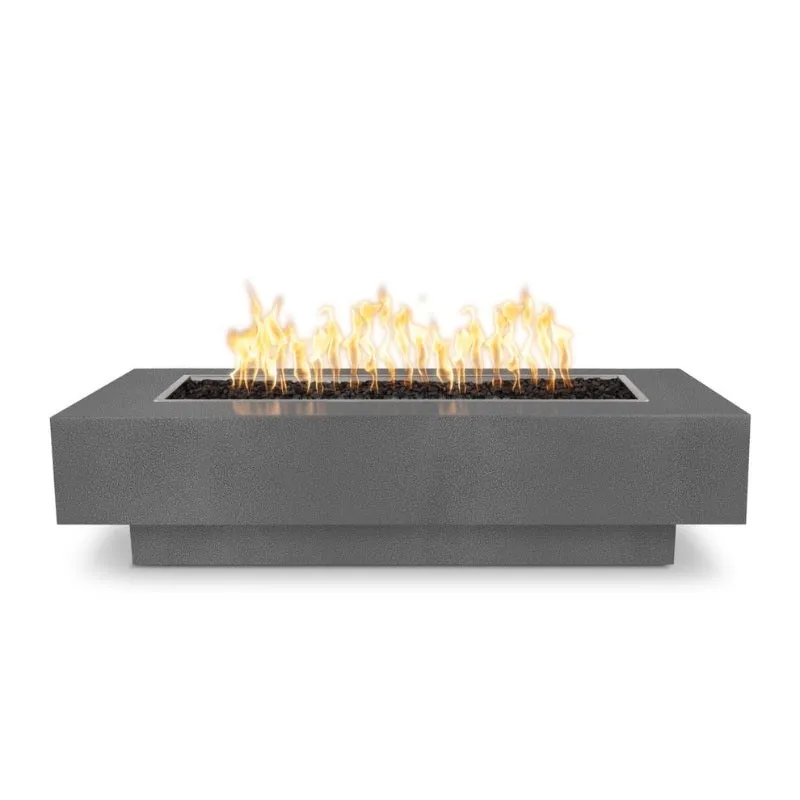

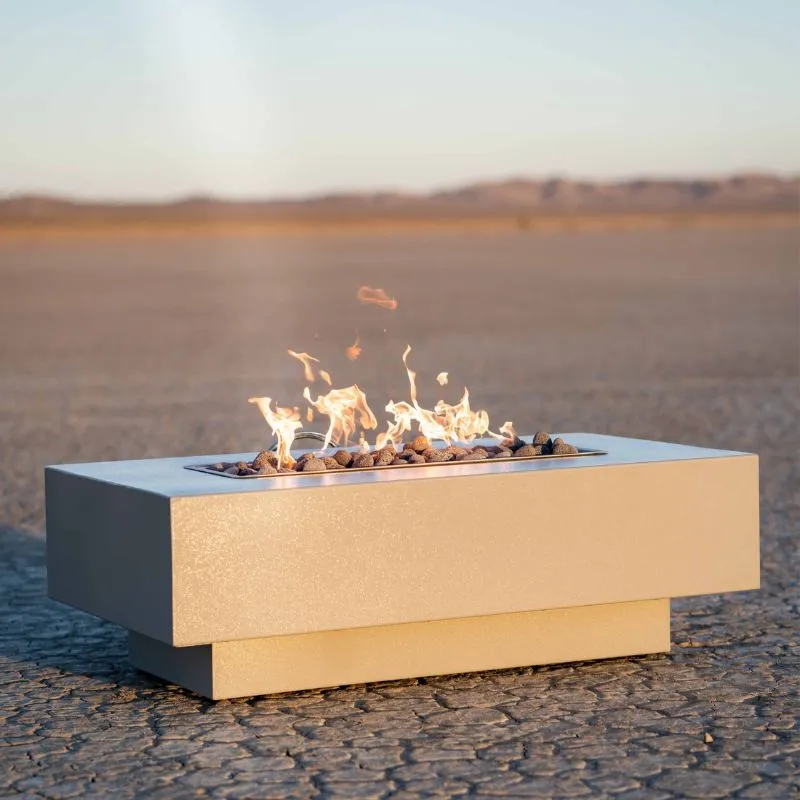

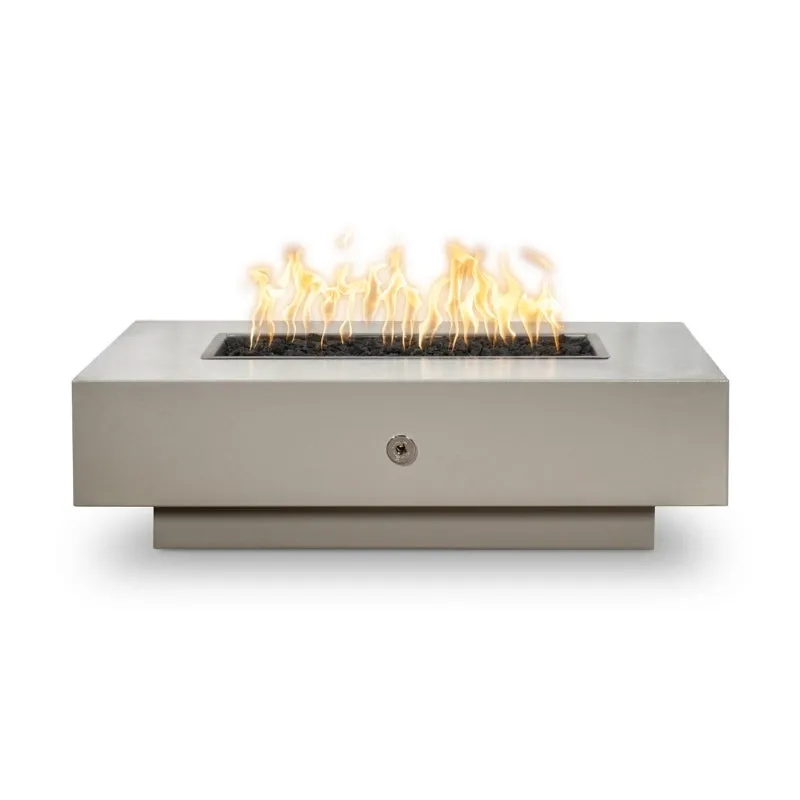

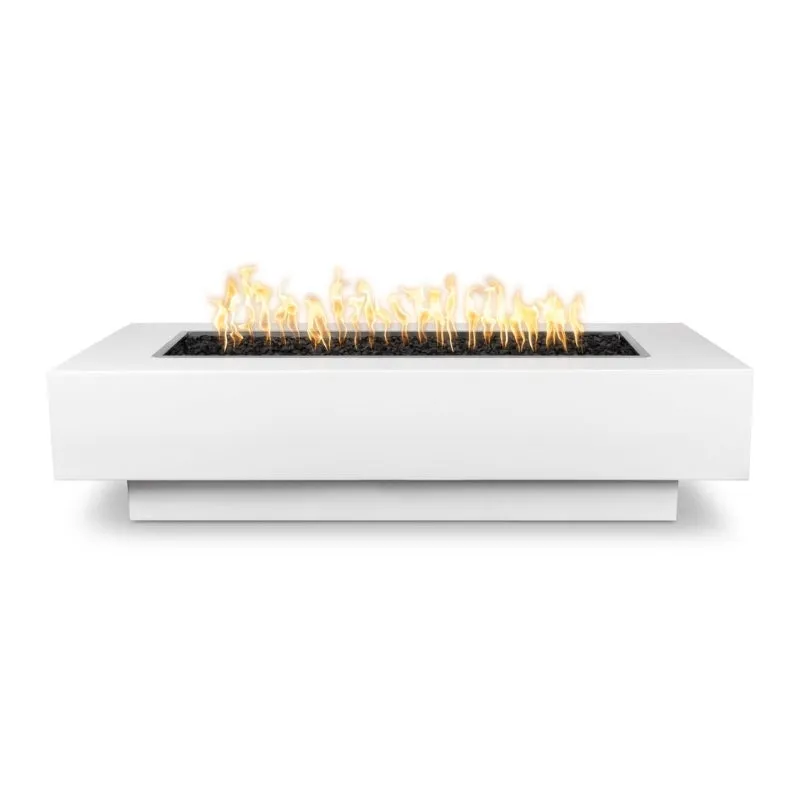

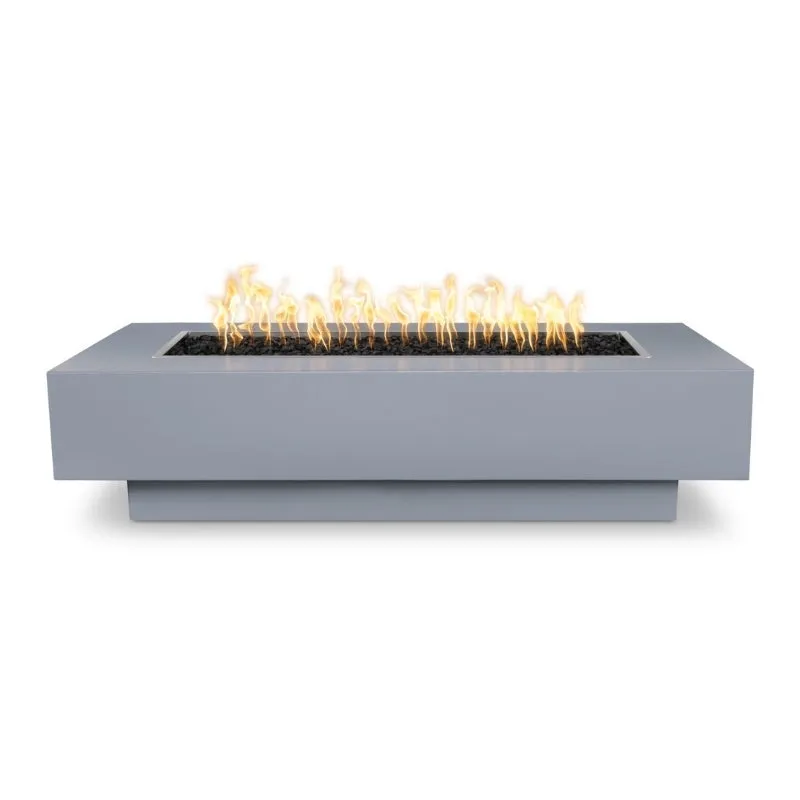

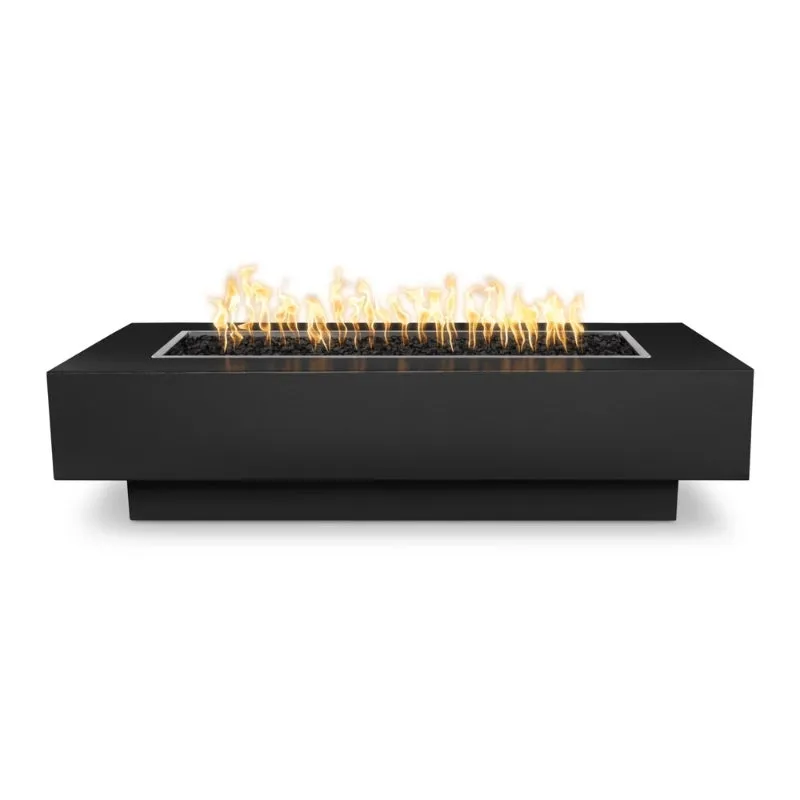

The Cedar Park Fire Pit in Powder Coated Metal
The Cedar Park Fire Pit comes available in 6 sizes (48", 60", 72", 84", 96", 108") and has multiple finish options (GFRC Concrete, Wood Grain Concrete, Hammered Copper, Corten Steel, Stainless Steel & Powder Coated Metal)
Benefits of Powder Coated Metal
Powder coating is a process where the dry finish is created utilizing an electric charge. It is designed to be stronger than paint and resist corrosion, which makes it ideal for outdoor fire features! Benefits of powder coat finishes include:
- Longevity
- Durability
- Quick Cleaning
- Uniform Coverage
- Corrosion Resistance
Cedar Park 84" Fire Pit Specs
- Dimensions: 84” x 28”
- Height: 15”
- Base: 74" x 18"
- Burning Area: 66” x 10” x 2”
- Weight: 245 lbs.
- BTU: 90K
- Sugg. Fire Glass: 75 lbs.
What is Included Standard?
Every Cedar Park Fire Pit, regardless of your ignition, fuel or color configuration comes standard with the following:
- Fire Pan
- Burner
- Key Valve
- Key
- Gas Hoses
- Lava Rock
Should You Upgrade to the Bullet Burner?
The patented tips on the bullet burner creates a taller flame while using less gas. The bullet burner isn't for everyone as the flame projects upward out of the burner and looks less "natural" than standard burners. But if a taller, livelier flame is what you are after...the bullet burner is for you!
Ignition Options
MATCH LIT:
How it works? - with match lit ignition the gas valve is turned on via a key (aka dante valve). You then safely light the burner with a kitchen lighter or match. There is no safety feature built in to shut the gas off if the flame goes out.
- Budget friendly
- No electricity or batteries needed
MATCH LIT WITH FLAME SENSE:
How it works? - to light the burner you push the on/off knob to activate gas flow then safely light the gas coming out of the pilot with a kitchen lighter or match. With flame sense, the gas automatically shuts off if your flames blow out.
- Monitors flame balance
- Adds extra layer of protection if flames blow out
- Adjustable flame height
- No electricity or batteries required
FLAME SENSE WITH SPARK IGNITION:
How it works? - uses a battery driven push button ignition to light your fire feature. No electricity is needed and the gas automatically shuts off if the flames blow out.
- Battery powered ignition
- Flame sense adds extra layer of protection if flames blow out
- Adjustable flame height
- No electricity required
ELECTRONIC IGNITION (LOW VOLT):
How it works? - low voltage (12 VAC) electronic ignition is required for fire features within 5 feet of water. Electronic ignition has all the safety features built in and enables you to control your fire feature remotely. Benefits of low volt electronic ignition:
- Self-monitoring safety features
- Perfect for Pool Automation
- Convenient Control Options
- Transformer included standard to achieve low voltage
ELECTRONIC IGNITION:
How it works? - electronic ignition has all the safety features built-in and enables you to control your fire feature remotely. Electricity (110V) is required to operate. Benefits of electronic ignition include:
- Self monitoring safety features
- Convenient control options
- Plug & play ready
- Easy for anyone to use

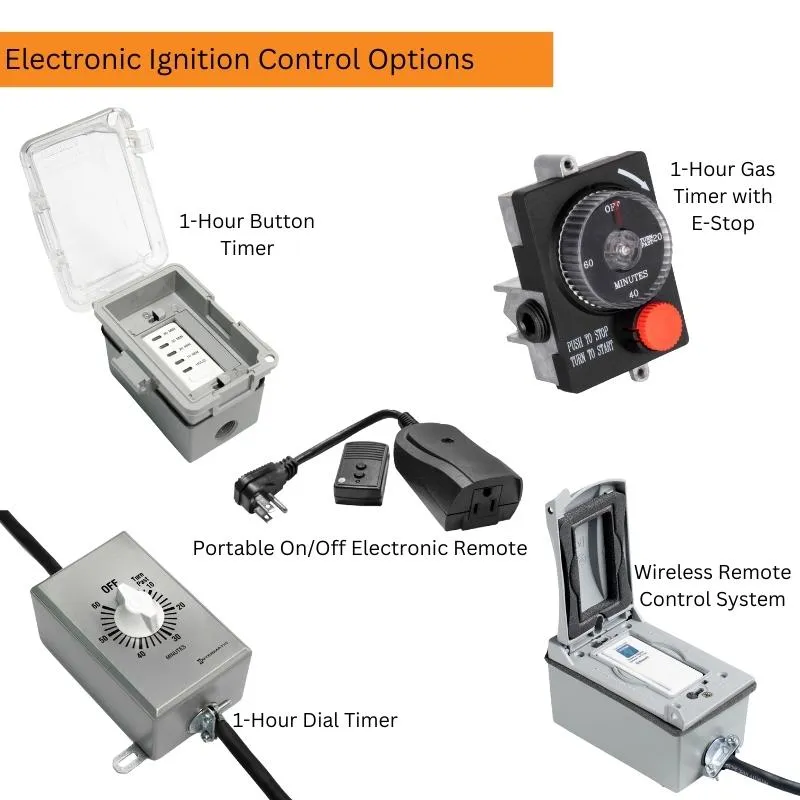

Control Options for Electronic Ignition
- Portable On/Off Electronic Remote - outdoor rated, includes wireless remote and receiver
- Wireless Remote Control System - includes wireless on/off remote control & receiver, plus outdoor rated electrical box with mounted switch.
- 1-Hour Dial Timer - includes outdoor rated electrical box and timer with dial. 60 mins max runtime
- 1-Hour Button Timer - includes wall mounted timer with 10 min, 20 min, 30 min, 60 min and HOLD timer options
- 1-Hour Gas Timer with E-Stop - includes wall mounted 60 min dial timer & emergency stop button
Resources
INSTALLATION MANUALS:
- Match Lit Ignition
- Match Lit with Flame Sense Ignition
- Spark with Flame Sense Ignition
- Electronic - Low Volt (12V)
- Electronic Ignition
SPEC SHEET: Cedar Park Fire Pit - Powder Coated Metal | 84"
