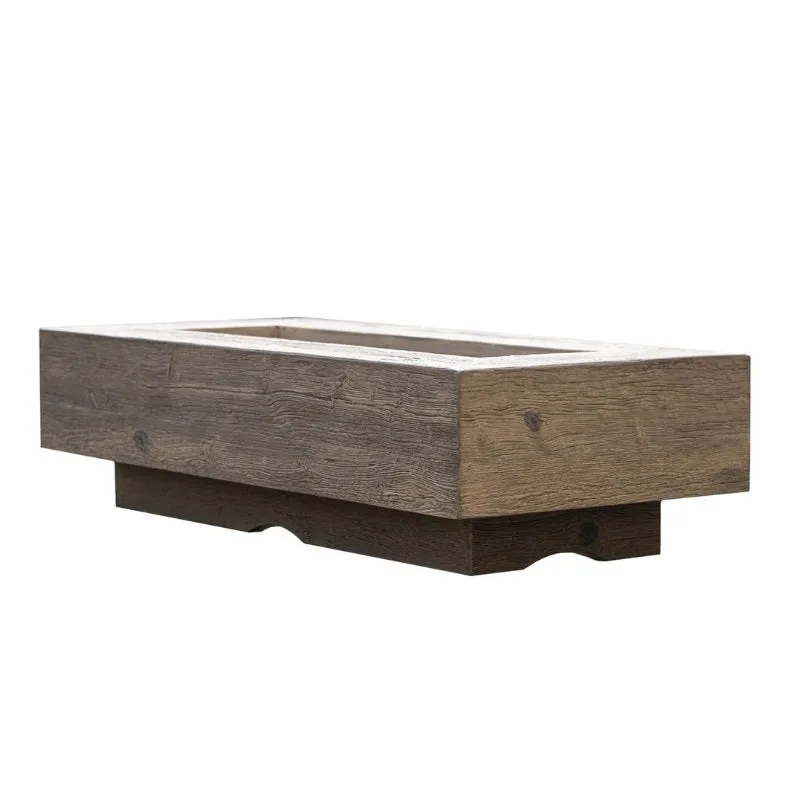

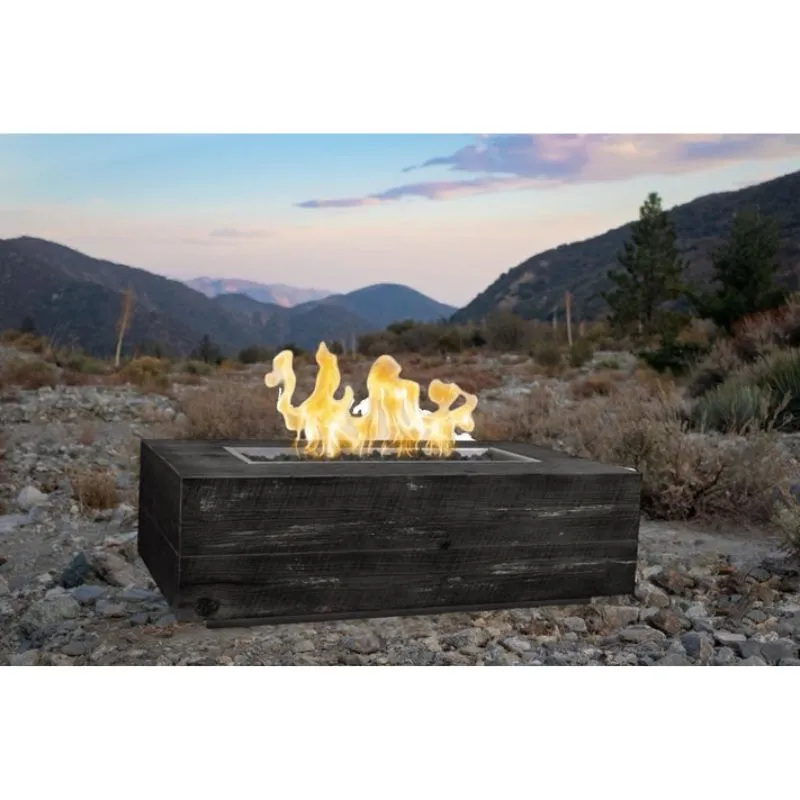

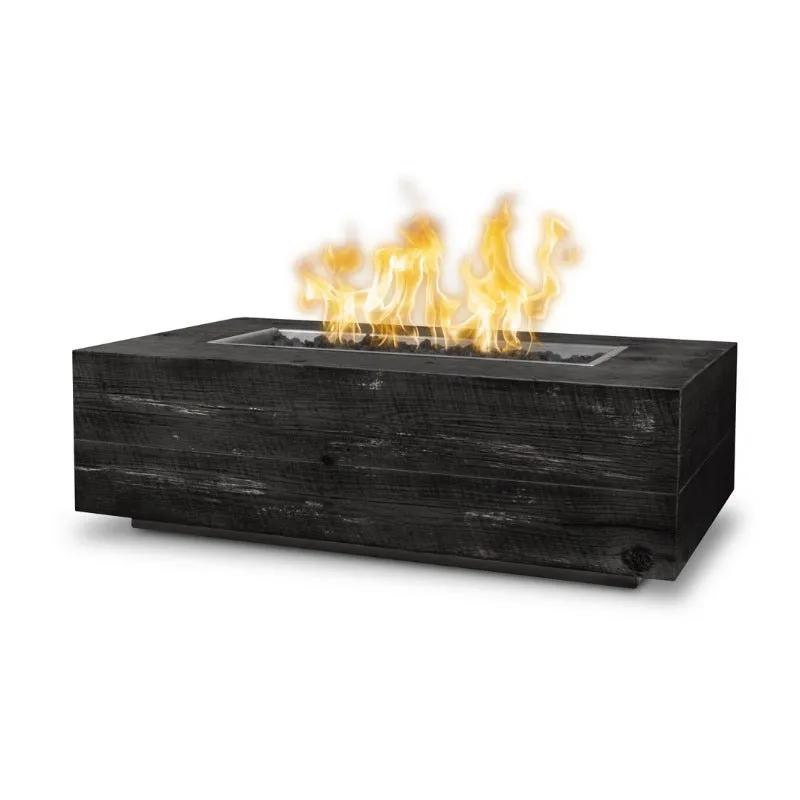

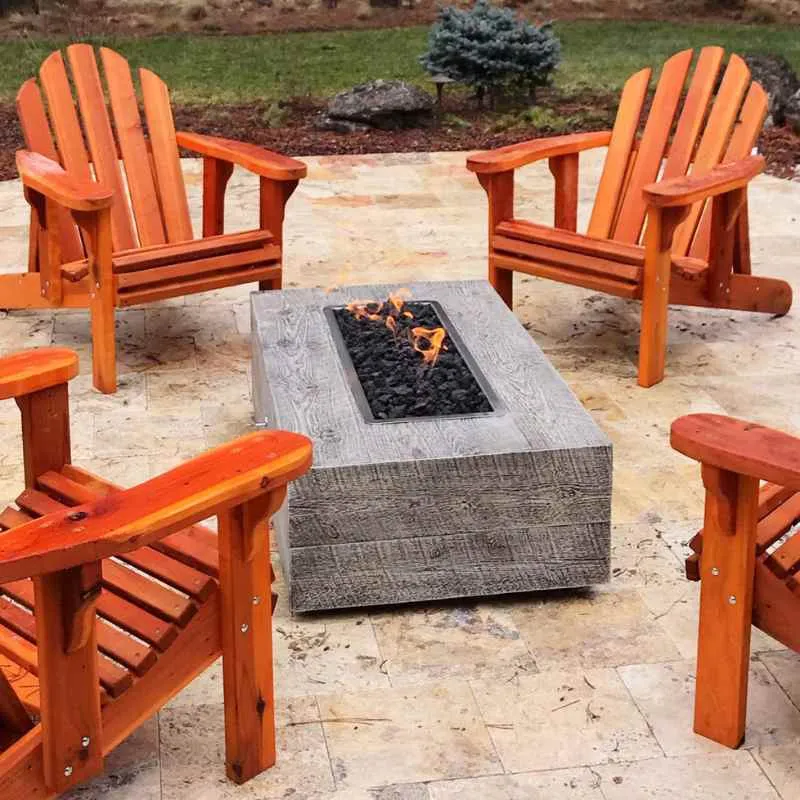

The Cedar Park Fire Pit in Wood Grain Concrete

The Cedar Park Fire Pit comes available in 7 sizes (48", 60", 72", 84", 96", 108", 120") and has multiple finish options (GFRC Concrete, Wood Grain Concrete, Hammered Copper, Corten Steel, Stainless Steel & Powder Coated Metal)

Cedar Park 96" Fire Pit Specs

• Dimensions: 96" X 28"
• Height: 15"
• Burn Area: 78" x 10”
• Toe Kick: 3" x 2"
• Weight: 690 lbs.
• BTU: 100K
• Glass: 100 lbs.

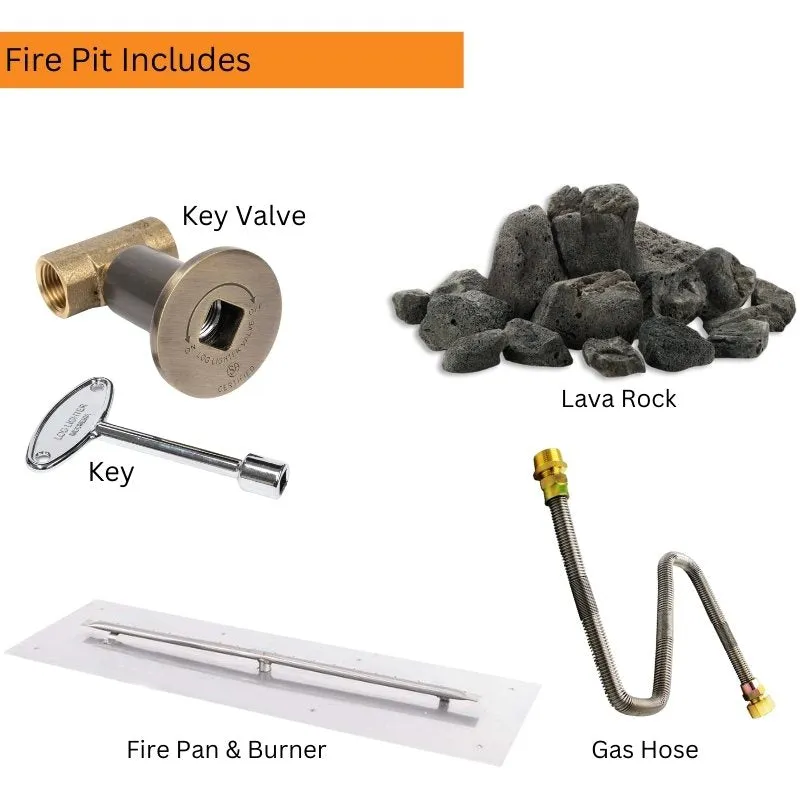

What is Included Standard?

Every Cedar Park Fire Pit, regardless of your ignition, fuel or color configuration comes standard with the following:

• Fire Pan
• Burner
• Key Valve
• Key
• Gas Hoses
• Lava Rock

Should You Upgrade to the Bullet Burner?

The patented tips on the bullet burner creates a taller flame while using less gas. The bullet burner isn't for everyone as the flame projects upward out of the burner and looks less "natural" than standard burners. But if a taller, livelier flame is what you are after...the bullet burner is for you!

Ignition Options

MATCH LIT:

How it works? - with match lit ignition the gas valve is turned on via a key (aka dante valve). You then safely light the burner with a kitchen lighter or match. There is no safety feature built in to shut the gas off if the flame goes out.

• Budget friendly
• No electricity or batteries needed

MATCH LIT WITH FLAME SENSE:

How it works? - to light the burner you push the on/off knob to activate gas flow then safely light the gas coming out of the pilot with a kitchen lighter or match. With flame sense, the gas automatically shuts off if your flames blow out.

• Monitors flame balance
• Adds extra layer of protection if flames blow out
• Adjustable flame height
• No electricity or batteries required

FLAME SENSE WITH SPARK IGNITION:

How it works? - uses a battery driven push button ignition to light your fire feature. No electricity is needed and the gas automatically shuts off if the flames blow out.

• Battery powered ignition
• Flame sense adds extra layer of protection if flames blow out
• Adjustable flame height
• No electricity required

ELECTRONIC IGNITION (LOW VOLT):

How it works? - low voltage (12 VAC) electronic ignition is required for fire features within 5 feet of water. Electronic ignition has all the safety features built in and enables you to control your fire feature remotely. Benefits of low volt electronic ignition:

• Self-monitoring safety features
• Perfect for Pool Automation
• Convenient Control Options
• Transformer included standard to achieve low voltage

ELECTRONIC IGNITION:

How it works? - electronic ignition has all the safety features built-in and enables you to control your fire feature remotely. Electricity (110V) is required to operate. Benefits of electronic ignition include:

• Self monitoring safety features
• Convenient control options
• Plug & play ready
• Easy for anyone to use

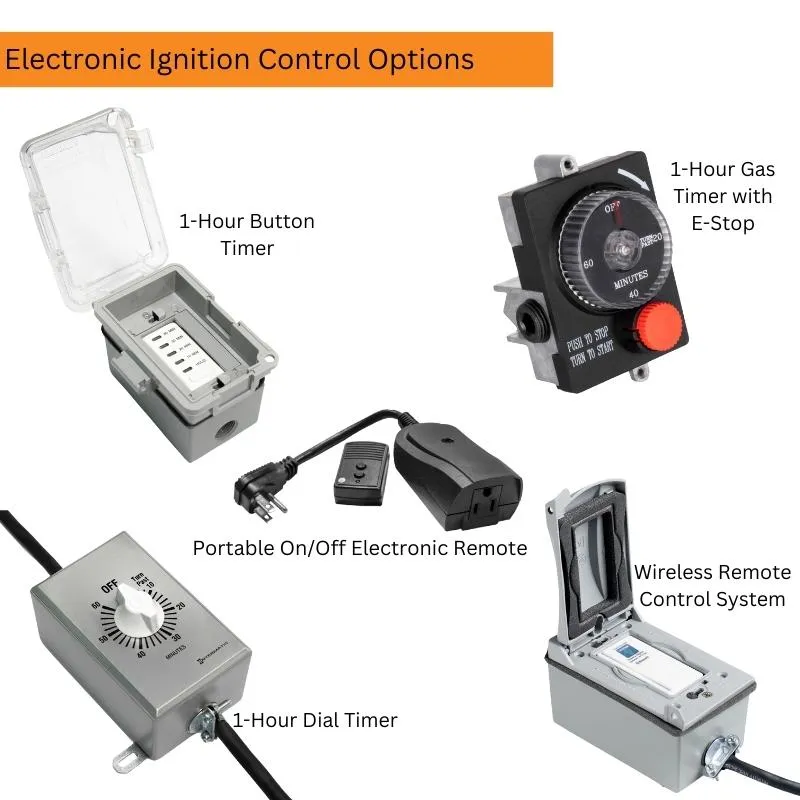

Control Options for Electronic Ignition

1. Portable On/Off Electronic Remote - outdoor rated, includes wireless remote and receiver
2. Wireless Remote Control System - includes wireless on/off remote control & receiver, plus outdoor rated electrical box with mounted switch.
3. 1-Hour Dial Timer - includes outdoor rated electrical box and timer with dial. 60 mins max runtime
4. 1-Hour Button Timer - includes wall mounted timer with 10 min, 20 min, 30 min, 60 min and HOLD timer options
5. 1-Hour Gas Timer with E-Stop - includes wall mounted 60 min dial timer & emergency stop button

Resources

INSTALLATION MANUALS:

• Match Lit Ignition
• Match Lit with Flame Sense Ignition
• Spark with Flame Sense Ignition
• Electronic - Low Volt (12V)
• Electronic Ignition

SPEC SHEET:  Cedar Park Fire Pit - Wood Grain Concrete | 96"
