- Measurement range of 0” - 8” (200 mm), and precise to 0.001” (0.02 mm)
- Vernier scale for precise measurement is graduated for both inches and metric
- Weighs approximately 3 lbs/1.4 kg and is compact, for measuring small objects in the field
- Hand-operated slider with fine-adjustment carriage for precise feed
- Carbide-tipped scriber for hardness and to help prolong life

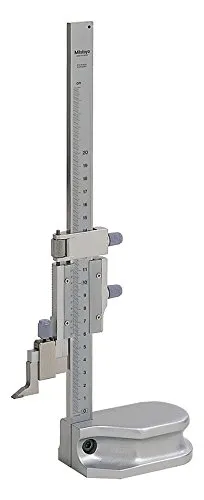

The Mitutoyo 506-208 vernier height gauge is graduated for both inches and metric, and has a measurement range of 0” to 8”/200 mm, and is precise to .001”/0.02mm, with or - 0.001”/0.03 mm of accuracy. It is compact and weighs approximately 3 lbs/1.4 kg, suitable for scribing while held against a vertical base or for measuring small objects in the field.
The scriber, used to mark a position on a workpiece, is 47-mm long, carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for secure fastening. The grip-base helps hold the unit in position by hand. The slider and beam are made of stainless steel. It has a glare-free satin chrome finish that helps resist rust.
A vernier scale provides precise measurement through a second sliding scale that indicates where measurement lies between marks on the main scale. A calibrated screw mechanism supports fine, uniform slider adjustments.
Height gauges, sometimes referred to as gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. The vertical position of the gauge and its attached pointer are changed by turning a calibrated screw, or one or more feed wheels. Recorded rotations are read from a scale, a dial, counters, and/or an electronic display. A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber, and can be used to mark a position on a workpiece by scratching its surface. On compatible units, the scriber may be replaced by an electronic touch-signal probe. Height gauges are typically used in manufacturing, machining, and mechanical engineering.
Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.
- Package Dimensions : 17.64 x 9.17 x 3.15 inches; 3.09 Pounds
- Date First Available : June 30, 2010
- Manufacturer : Mitutoyo
- Country of Origin : Japan
