- [ SPECIFICATIONS ]: Model: EX-WK-C6126-1/4-K | Motor: 600W | Voltage: 12V DC | Current Draw: 33A | Circuit Breaker: 60A | Waterproof Rating: IP66 | Max Pull: 992 lbs (450 kg) | Working Load: 330 lbs (150 kg) | Drop Speed: 85 ft/min (26 m/min) | Chain: 1/4" HT G4 | Rope: 1/2" (12mm) 3-Strand | Weight: 20.3 lbs (10.1 kg) | Housing: 316 Stainless Steel

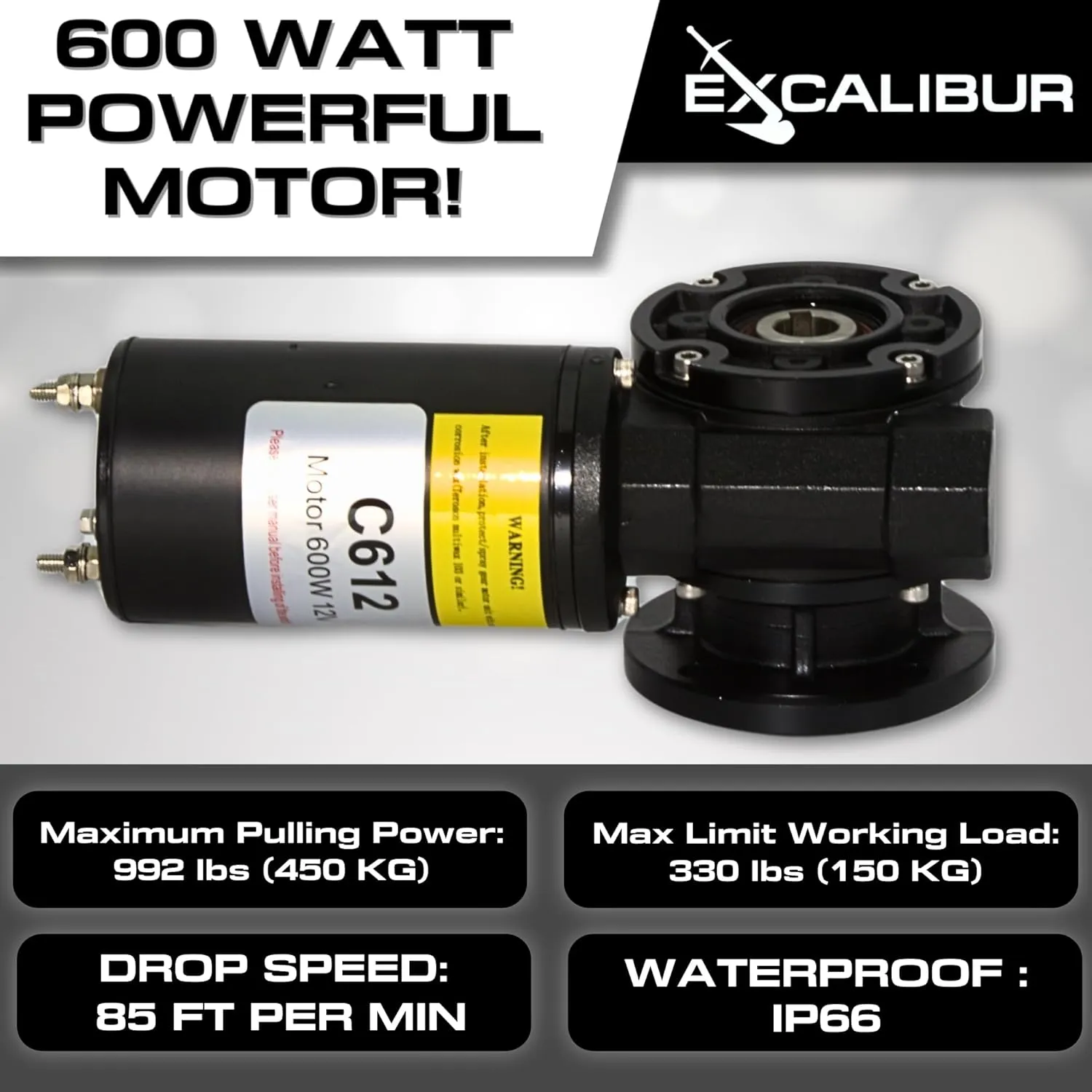

- [ POWERFUL ANCHOR SYSTEM WITH CAPSTAN ]: The 600W motor delivers up to 992 lbs of pull strength for smooth anchor retrieval while the built-in capstan offers manual rope cranking functionality—perfect for line handling, docking assistance, or gear lifting tasks on deck.

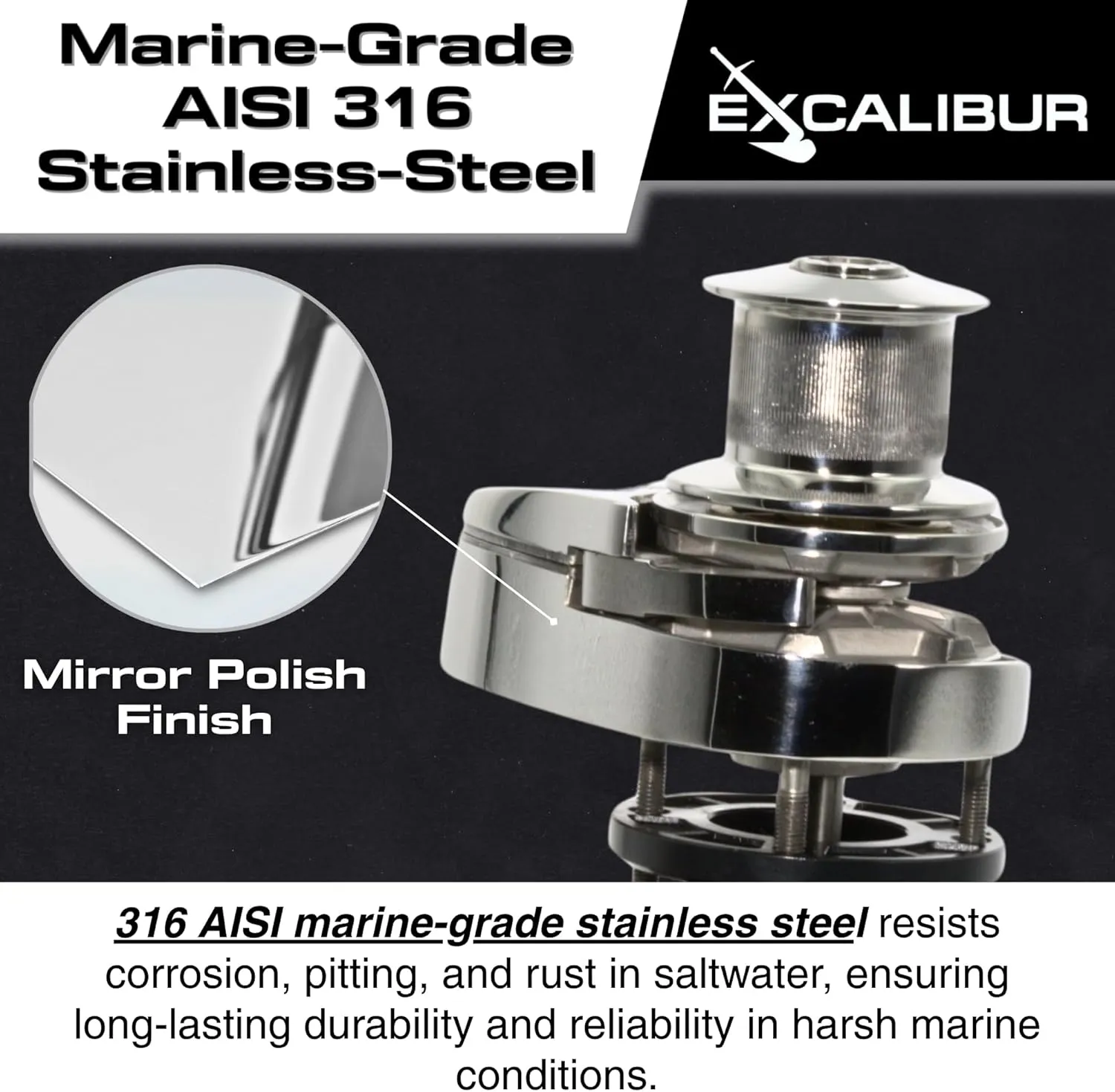

- [AISI 316 MARINE-GRADE STAINLESS STEEL HOUSING]: Built from marine-grade AISI 316 stainless steel and reinforced with hot-forged components, this unit resists pitting, corrosion, and high-load strain for long-term use in saltwater or freshwater environments.

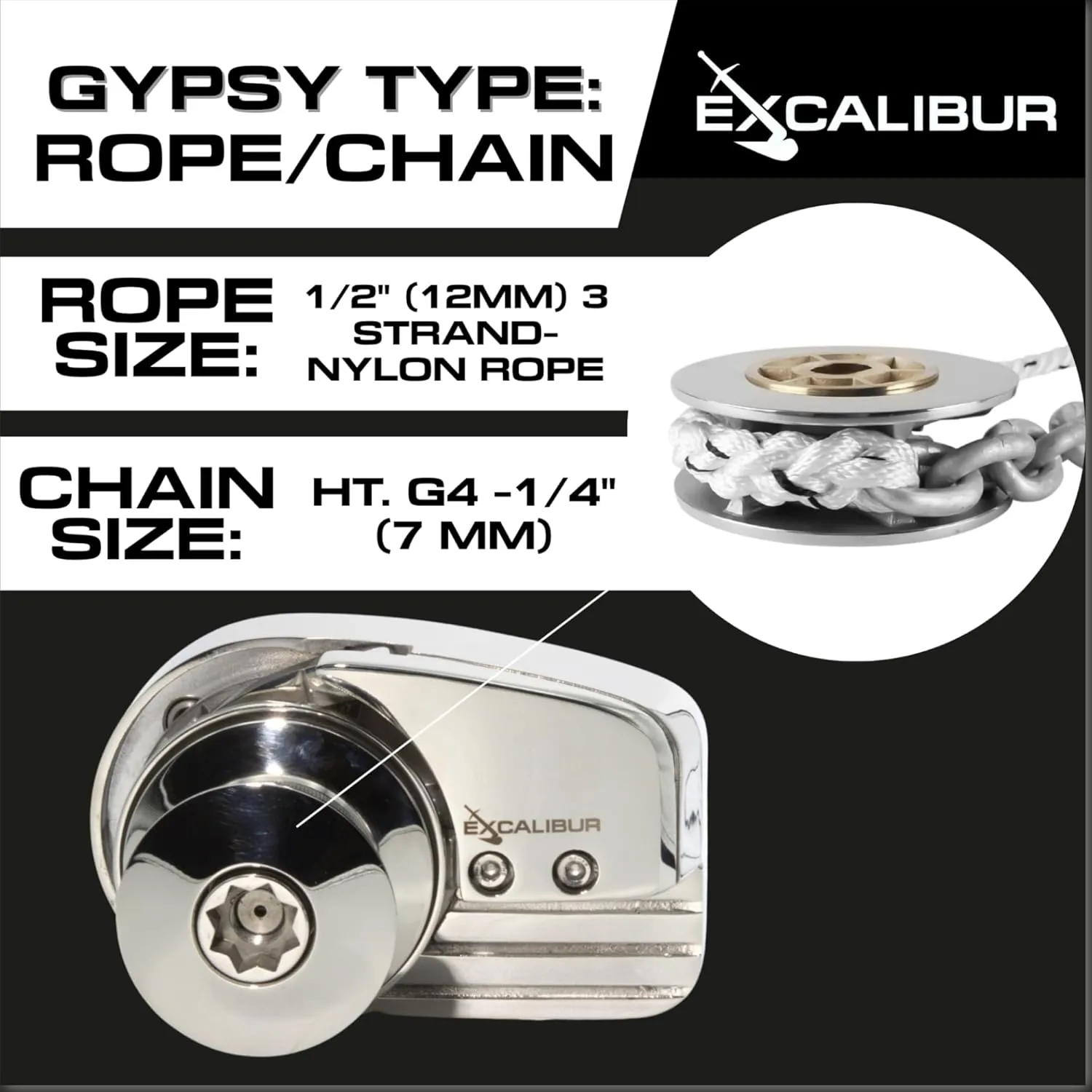

- [ ROPE AND CHAIN VERSATILITY ]: Designed for use with 1/4 inch HT G4 chain and 1/2 inch 3-strand rope, this windlass ensures compatibility with the most common marine anchor setups while delivering the flexibility needed for custom anchoring solutions.
- [ FAST LINE SPEED FOR EFFICIENCY ]: Featuring a retrieval rate of 85 feet per minute (26 meters per minute), this system offers fast deployment and recovery of your anchor, reducing downtime and allowing for quick repositioning during anchoring operations.
- [ USER-FRIENDLY CAPSTAN FEATURE ]: The integrated capstan functions like a traditional deck winch, giving you the ability to manually haul or crank lines for a variety of tasks—ideal for tying off, lifting heavy gear, or tensioning mooring lines on demand.

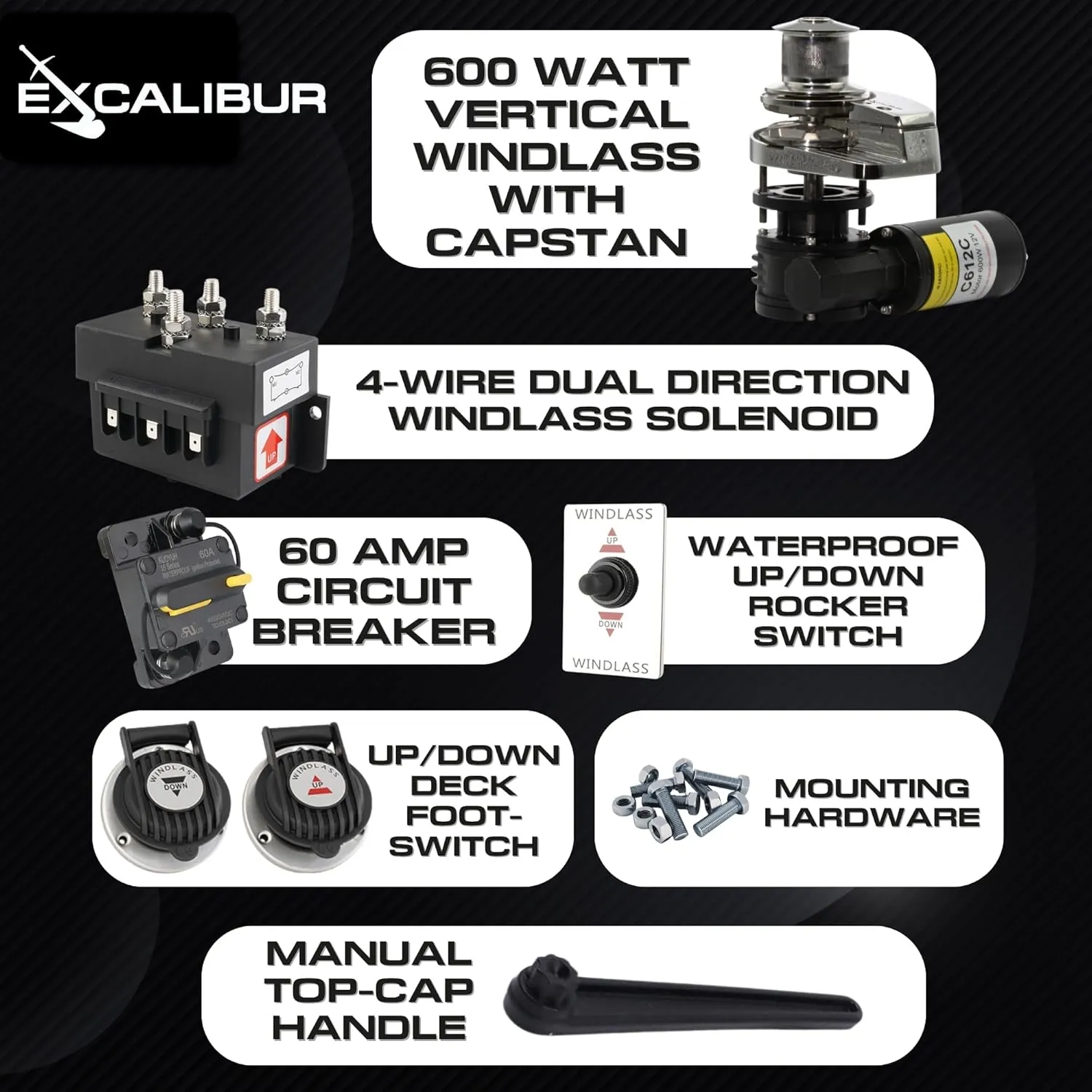

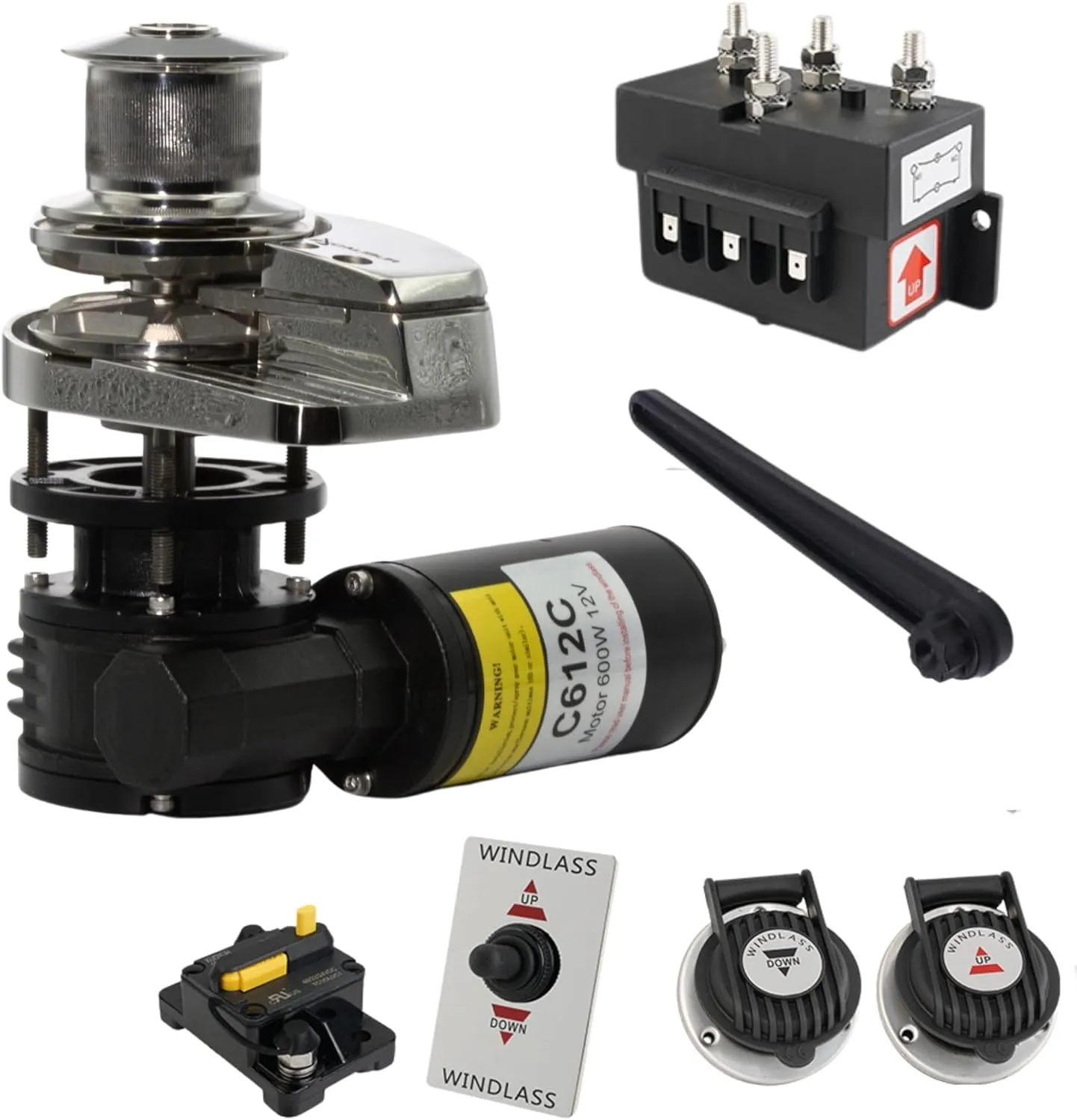

- [ COMPLETE WINDLASS KIT INCLUDED ]: This all-in-one kit comes with the vertical windlass, 600W 12V motor, capstan, 4-wire solenoid, 60A circuit breaker, rocker switch, up/down foot switch, manual top-cap handle, mounting hardware, template, and user manual.

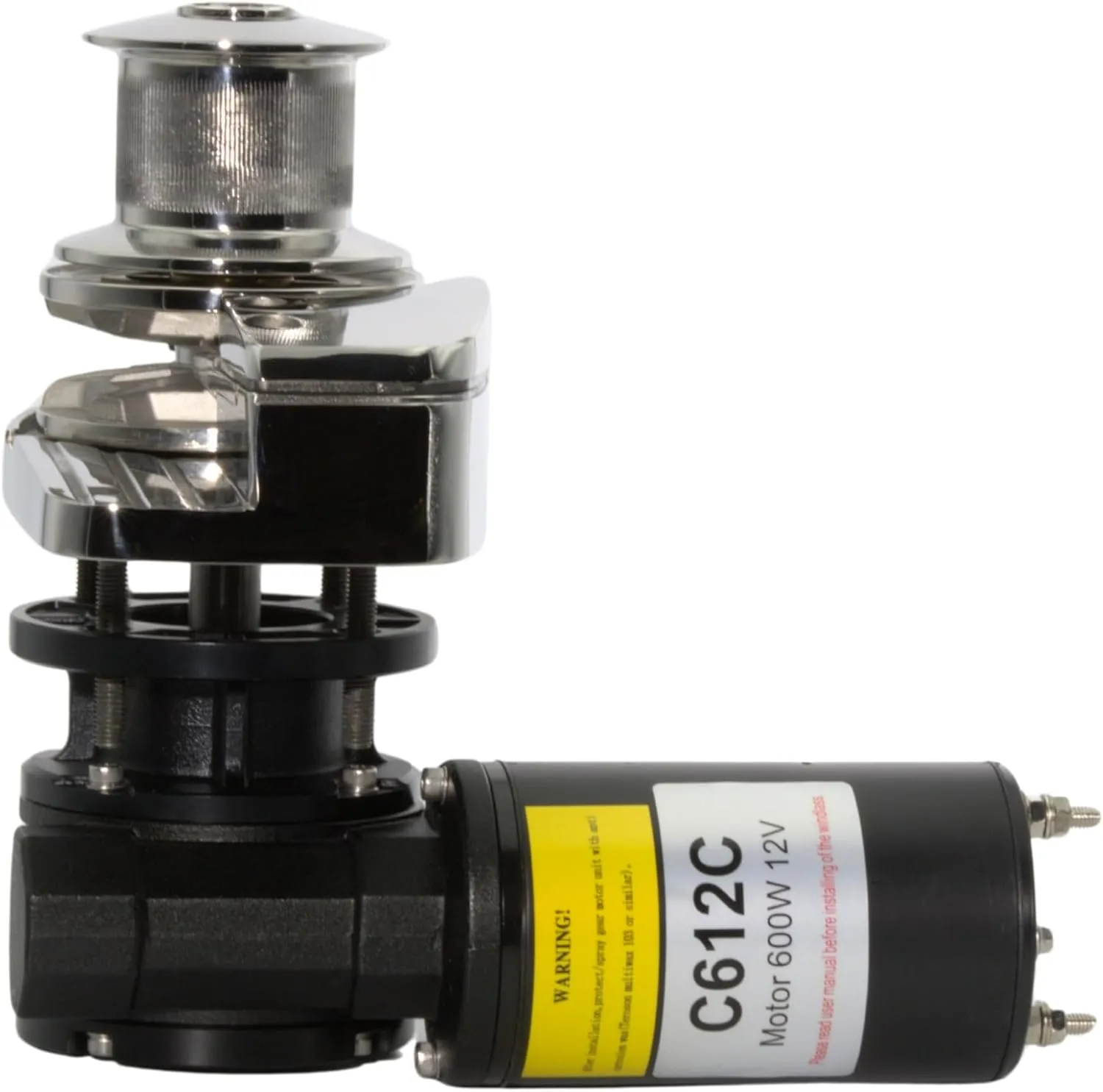

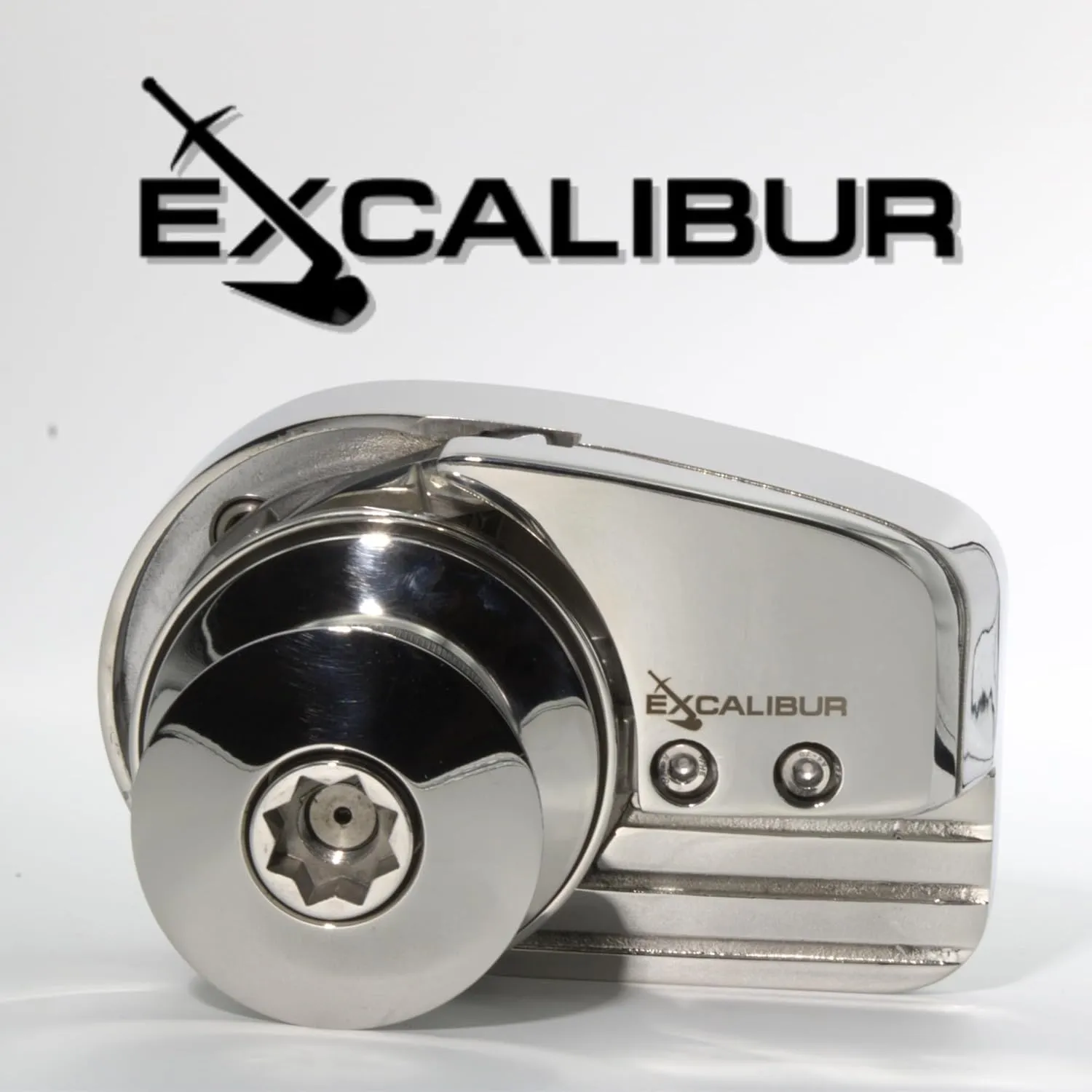

The EXCALIBUR Horizontal Windlass Anchor System is a rugged, marine-grade anchoring solution for boats up to 40 feet (12 meters) in length. Designed with above-deck installation in mind, it delivers powerful performance and simplified setup for vessels with limited space below deck or thicker topside structures.
With a high-efficiency 600W motor, this windlass achieves up to 1200 lbs of pulling power and a 400 lb working load limit. The gypsy accommodates both 1/4 inch HT G4 chain and 1/2 inch (12mm) 3-strand rope, offering versatile anchoring configurations. Its polished AISI 316 stainless steel housing ensures long-term resistance to saltwater corrosion and marine stress.
An IP66-rated motor, fast 115 ft/min chain speed, and full installation kit make this windlass ideal for boaters seeking speed, durability, and reliability. Whether you're anchoring in heavy current or tight coastal moorings, EXCALIBUR delivers consistent, hassle-free performance every time.
